General Specs |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Fuel Type | Natural Gas |
| Burner Type | Sealed |
| Number of Elements/Burners | 5 |
| Cooktop Surface | Stainless Steel |
| Cooktop Surface Style | Burner Grate |
| Ignition Type | Automatic Electronic |
| Grate Material | Porcelain-Enameled Cast Iron |
| Cooktop Features | Continuous Grate |
| Downdraft Ventilation | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 36 |
| Depth (in.) | 21 |
| Height (in.) | 7.88 |
| Product Weight (lbs.) | 55 |
| Cut Out Width (in.) | 33.88 |
| Cut Out Depth (in.) | 19.13 |
| ADA Compliant | Yes |
| Manufacturer Warranty | 2 Year Limited Parts and Labor |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 15 |
Accessories |
| Conversion Kit | Included - Nat. Gas to LP |
| Cooktop Cleaning | Included |
Appearance |
| Color Appearance | Stainless Steel |

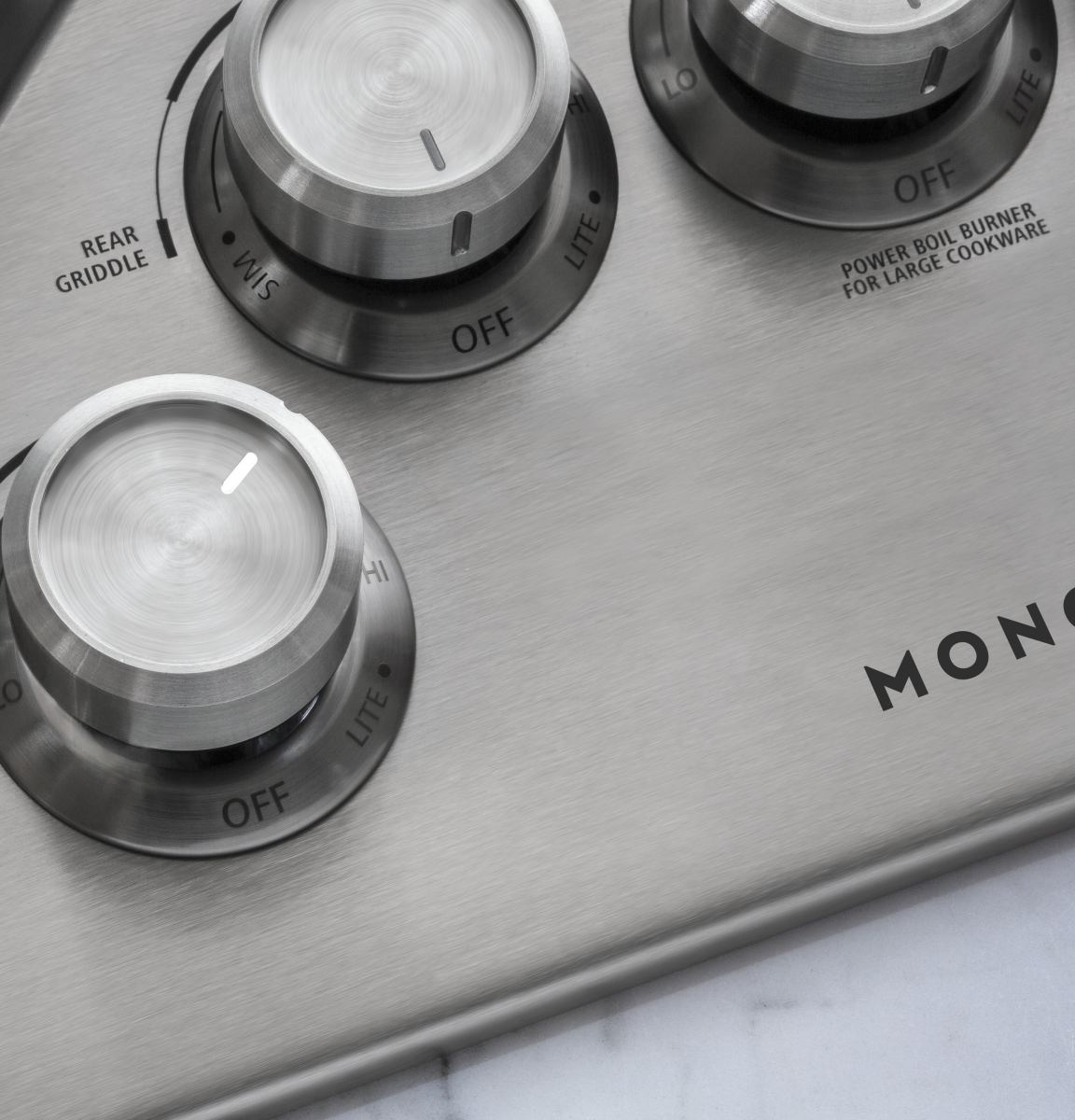

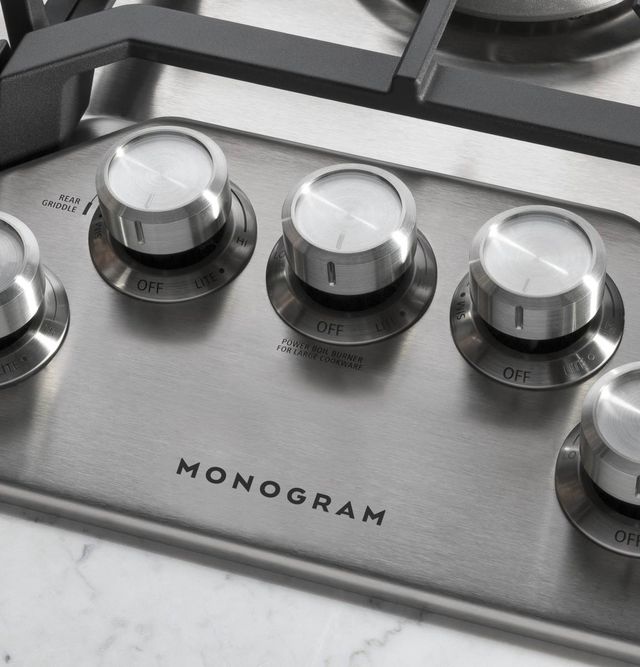

| Control Knobs | Precision Knobs with Embedded Sapphire Glass |
| Installation | Over Single Wall Oven (except Single-Double),Over Warming Drawer,Over Advantium Built-In 120V |
Features |
| 140 Deg. Simmer Burner | 5 |
| Automatic Re-Ignition | Yes |
| Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
| Burner - Left Front | 10,000 BTU Dual |
| Burner - Left Rear | 10,000 BTU Dual |
| Burner - Right Front | 12,000 BTU Dual |
| Burner - Right Rear | 10,000 BTU Dual |
| Burner Indicator Light | Yes - in Knob |
| Collection | Statement,Minimalist |
| Configuration | 5 Sealed Cooktop Burners |
| Control Location | Front Center |
| Cooking Technology | Natural Gas |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
| Cooktop Burner Type | 5 Sealed |
| Cooktop Surface | Stainless Steel |
| Cooktop Type | 5 Burners,Continuous Grates |
| Dual Flame Stacked Burners | Burners 5 |
| Extra Low Simmer | Burners 5 |
| Fuel Type | All-Gas (Natural Gas) |

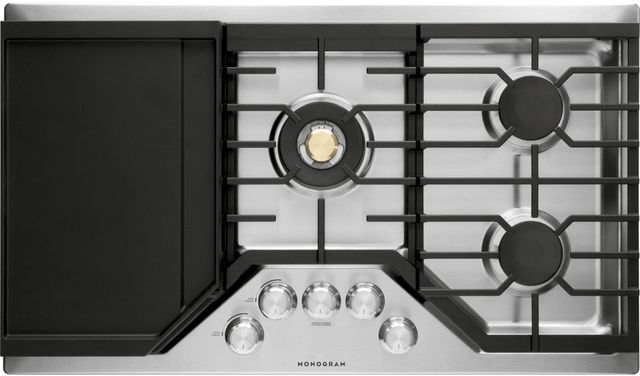

| Griddle | JXGRIDL236 (Included) |
| Ignition System | Direct Electronic Ignition |
| Product Type | Cooktop |
| Valves (Degree of Turn) | 270 |
Additional Dimensions |
| Cabinet Width | 36 in |
