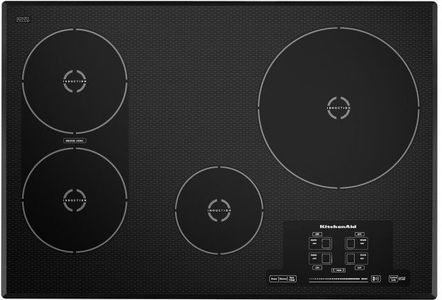

KitchenAid® Architect® Series II 30" Black Induction Cooktop


    Model #:

    KICU509XBL-CL

    Model #: KICU509XBL-CL
    1333865
    KitchenAid
    $1,890.95
    CLOSEOUT

    At a Glance

    Product Dimensions 3.13"h x 30.75"w x 21.31"d

    This 30-inch induction cooktop uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. A bridge function lets you combine the power of two elements into one large cooking zone for specialty cookware such as a griddle or oval pan.Read More

    Available in Store Only
    $1,890.95

    What We Offer

    Protect Your Purchase
    None Selected
    Services
    None Selected

    Get to know this product.

    Product Overview

    Product Overview
    4-Element Cooktop

    Provides four independent cooking surface areas.

    2 Elements with Bridge Function

    Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.

    12 Heat Level Settings

    Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.

    Performance Boost

    Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling

    Melt and Hold

    Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.

    Pan Size Detection

    Provides feedback on whether pan size is suitable for the selected element.

    Touch-Activated Controls

    Integrate seamlessly into the surface and include a slider for heat-level selection

    Simmer Function

    Automatically selects a low power level to help maintain a constant simmer without boiling over.

    Control Lock

    Helps prevent unintended use and makes it easier to clean the control panel

    Useful Documents
    Specifications

    General Specs

    ColorBlack
    Element TypeInduction
    Fuel TypeElectric
    Appliance ColorBlack
    Depth (in.)21.31
    Height (in.)3.13
    Width (in.)30.75
    Manufacturer Warranty1 Year
    Appliance Fit Width (in.)30
    CollectionArchitect® Series II
    Color Finish NameBlack
    ADA CompliantNo
    ENERGY STAR CertifiedNo
    Commercial Use ApprovedNo
    Smart CompatibleNo
    Number of Elements/Burners4
    Downdraft VentilationNo
    Voltage240
    Frequency60
    Amp40/50
    Cooktop FeaturesHot Surface Indicator Light, Door/Child Lock, Bridge Element, Pan Presence Sensor
    Cooktop Surface StyleGlass-Top
    Cooktop SurfaceCeramic Glass

    Appearance

    Digital DisplayYes

    Dimensions

    Cutout Depth19-5/16 in
    Cutout Width29-1/2 in

    Cooktop Details

    Left Rear Element-Burner TypeBridge
    Right Rear Element-Burner Power3700W/2300W
    Left Front Element-Burner TypeBridge
    Hot Surface Indicator LightYes
    Cooktop Surface MaterialCeramic Glass
    Heating Element On Indicator LightYes
    Automatic Pan DetectionYes
    Right Front Element-Burner Power1800W/1400W
    WarningProposition 65 Warning for California Residents
