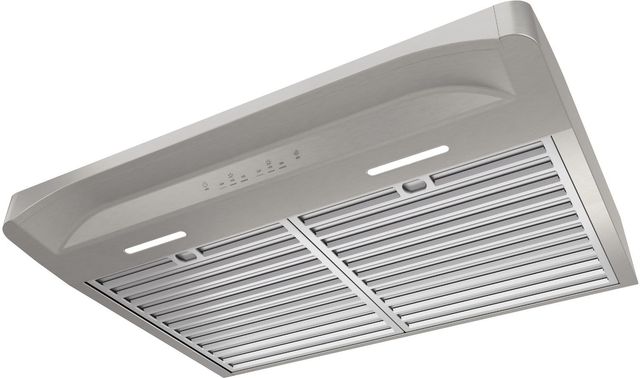

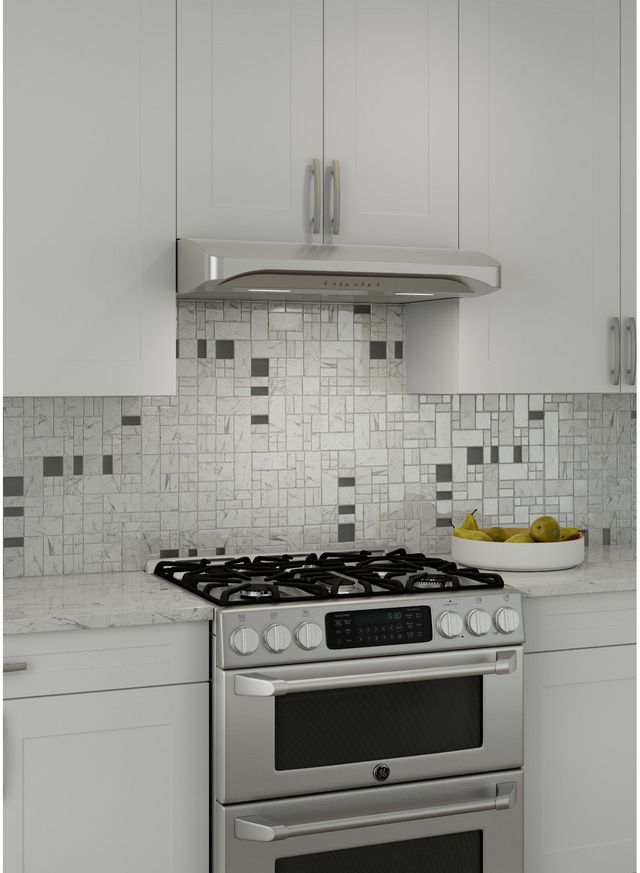

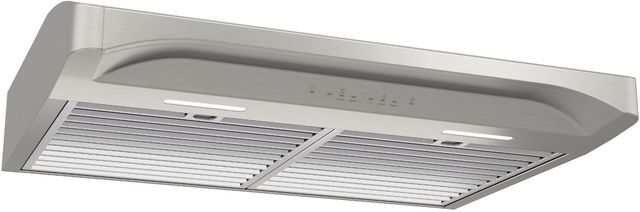

      Broan® Elite Alta™ 3 Series 36" Stainless Steel Convertible Under Cabinet Range Hood

      View more by Broan

      Model #:

      ALT336SS

      $639.95
      View Delivery & Pickup Options
      Add ZIP Code

      Description

      The sculpted lines of Alta™ bring an exciting, new choice to typical range hood shapes. Infrared controls, hybrid baffle filters and LED lighting lends a pro-style edge to your kitchen.Read More

      What We Offer

      Product Details

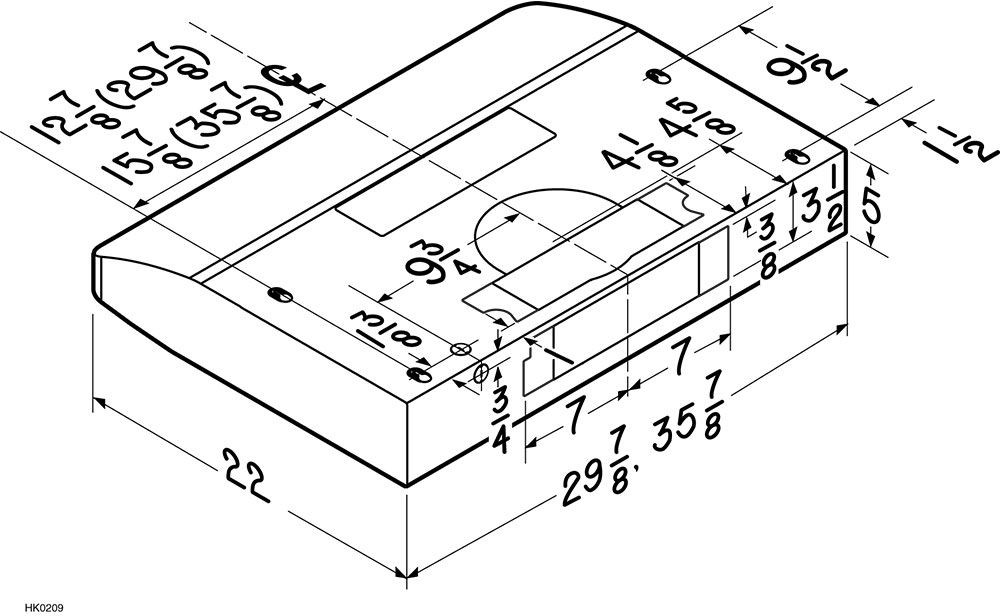

      Dimensions5"h x 35.88"w x 22"d
      ColorStainless Steel
      Color-Finish NameStainless Steel
      Range Hood TypeUnder Cabinet
      Ventilation TypeConvertible (Both)

      Get to know this product.

      Product Overview

      Product Overview

      Model replaced BQLA136SS

      The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM

      Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed

      Bright, three-level LED modules – supported by a 3-year warranty – illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K

      Three-speed, whisper touch infrared control is a pleasure to use and admire. Delay off feature runs the blower for 10 minutes after cooking to clear the air

      Broan Heat Sentry® detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation

      Dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture

      EZ1 brackets make it easy for single person installation in less than half the time of traditional methods

      ADA compliant, remote operation is possible using a standard UL approved wall switch

      Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry

      Optional HCR3 handheld remote enables control from anywhere in the kitchen

      Useful Documents
      Specifications

      General Specs

      ColorStainless Steel
      Color-Finish NameStainless Steel
      Range Hood TypeUnder Cabinet
      Ventilation TypeConvertible (Both)
      Grease Filter TypeBaffle
      Duct Size (in.)7
      Sones Rating0.5
      Noise Level (Sones)Quiet - (Low)
      Maximum CFM400
      Smart CompatibleNo
      Outdoor ApprovedNo
      Appliance Fit Width (in.)36
      Width (in.)35.88
      Height (in.)5
      Depth (in.)22
      ADA CompliantYes
      ENERGY STAR CertifiedNo
      CollectionElite Alta™ 3 Series
      Manufacturer Warranty1 Year / 3 Year LED Modules
      Voltage120
      Amp1.4
      Frequency60

      Overview

      Control type3-Speed Infrared
      Lighting3-level LED (included)
      Grease FiltersHybrid Baffle (Qty. 2)
      Installation HardwareEZ1 Bracket
      RecirculationNon-ducted filters sold separately
      Delay offYes
      Filter Clean ReminderYes
      Heat Sentry™Yes
