General Specs |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Ventilation Type | Convertible (Both) |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 6 |
| Bulb Type | LED |
| Sones Rating | 0.3 - 3.5 |
| Noise Level (Sones) | Moderate - (Medium) |
| Maximum CFM | 300 |
| Range Hood Features | Wi-Fi Capable, Light, App Capable |
| Smart Compatible | Yes |
| Filter Indicator Light | No |
| Fan Speed Options | 4 |
| Outdoor Approved | No |

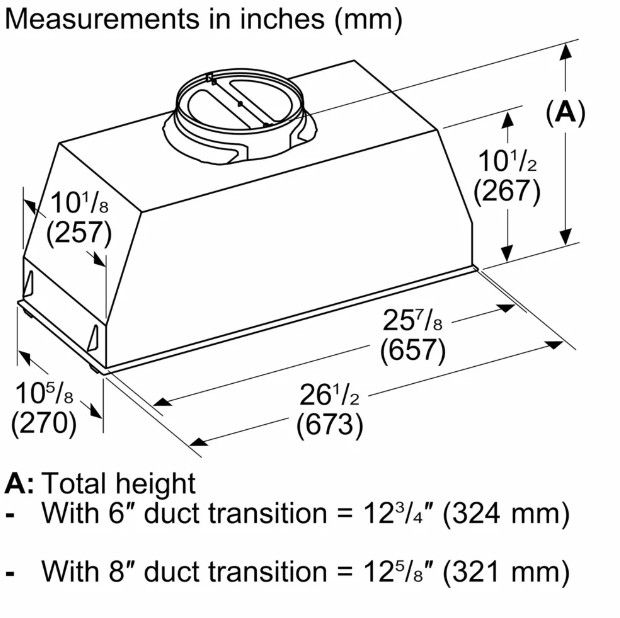

| Appliance Fit Width (in.) | 30 |
| Width (in.) | 26.5 |
| Height (in.) | 5.75 |
| Depth (in.) | 10.63 |
| Height Above Cooktop | 24 - 30 |
| Height Above Cooktop Centimeter | 60.96 - 76.20 |
| Shipping Width (in.) | 31.25 |
| Shipping Depth (in.) | 13 |
| Shipping Height (in.) | 15.5 |
| Product Weight (lbs.) | 24 |
| Made In Canada | No |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Masterpiece® |
| Series | Masterpiece® |
| Manufacturer Warranty | 2 Year Limited Parts and Labor |
| Voltage | 120 |
| Amp | 2.4 |
| Frequency | 60 |
Specifications |
| Installation Type | Wall-mounted |
| Venting | Ducted: Convertible to Recirculation Mode |
| Material | Stainless Steel |
| Filter Type | Mesh |
| Type of Control | Touch Control, Via app |
| Speed Settings | 4 Fan Speeds |
Additinal Dimensions |
| Required Distance Above Cooktop/Ranges | 30''/30'' |
| Damper | No |
Comfort and Convenience |
| Clean Filter Reminders | Yes |
| Delay Shut Off Modes | Yes |
| Boost Speed | No |
| Remote Control (Accessory Sold Separately) | Yes |
| ADA Compliant (When Installed to ADA requirements) | No |
Light |
| Light Type | Low Consumption |
| Number of Lights | 2 |
| Total Luminance | 150 lux |
| Color Temperature | Neutral (3.500 K) |
| Heat Lamps | No |
Connectivity |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Monitoring and Control |
| Cooktop Hood Sync | No |
