      Elica Techne Series Rise 30" Stainless Steel Downdraft Range Hood

      View more by Elica

      Model #:

      ERS630S1

      $1,759.95
      View Delivery & Pickup Options
      Add ZIP Code

      Description

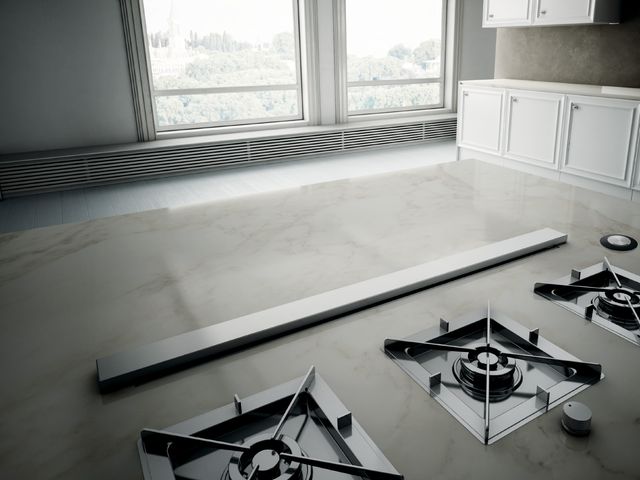

      When the view out your kitchen window is too spectacular to disrupt with a range hood, Elica’s Rise is the perfect solution. Rise recesses completely out-of-sight into the countertop (when not in use), but when it’s time to cook, Rise elevates a full 14” above the countertop (almost twice the height of competitors), for added ventilating efficiency. On top of that, Elica added Perimeter Aspiration Technology, which increases suction 35% and actually draws air from the front burner effectively, to create the best functioning downdraft on the market. Rise comes equipped with a powerful 600 CFM internal blower, which is operated by an electronic rotating control that’s flush mounted into the countertop or cabinet face. For maximum flexibility, the blower can be rotated to the opposite side to make room for a floor mounted range.Read More

      What We Offer

      Product Details

      Dimensions14"h x 30"w x 12.5"d
      ColorStainless Steel
      Color/Finish NameStainless Steel
      Range Hood TypeDowndraft
      Ventilation TypeDucted

      Get to know this product.

      Product Overview

      Product Overview

      Perimeter aspiration - This extraction system is distributed along the entire perimeter of the hood, delivering exceptional efficiency. A concealed panel covers the extraction area, adding a touch of pure elegance to your kitchen hood.

      Top performance - Excellent performance for models equipped with this plus. High fume capturing capacity with an average aspiration range of 600 CFM's. with low noise levels, 1.2 - 1.7 sones at working speed.

      Useful Documents
      Specifications

      General Specs

      ColorStainless Steel
      Color/Finish NameStainless Steel
      Range Hood TypeDowndraft
      Ventilation TypeDucted
      Ventilation DirectionDowndraft
      Vent LocationSide
      Grease Filter TypeAluminum Mesh
      Duct Size (in.)6" Round
      Sones Rating6.8
      Noise Level (Sones)Standard - (High)
      Maximum CFM600
      Smart CompatibleNo
      Fan Speed Options4
      Outdoor ApprovedNo
      Appliance Fit Width (in.)30
      Width (in.)30
      Height (in.)14
      Depth (in.)12.5
      Height Above Cooktop30
      Height Above Cooktop Centimeter76.20
      Shipping Width (in.)35
      Shipping Depth (in.)35
      Shipping Height (in.)16.1
      Product Weight (lbs.)85.98
      ADA CompliantNo
      ENERGY STAR CertifiedNo
      CollectionTechne Series Rise
      Manufacturer Warranty3 Year Parts & Labor
      Voltage120
      Amp3.6
      Frequency60

      Overview

      Noise (sones)Min: 1.9, Max: 8.0
      Duct Transition6” Round with Back Draft Damper (side)
      Installation TypeDucted Installation only
      Product MaterialStainless Steel
