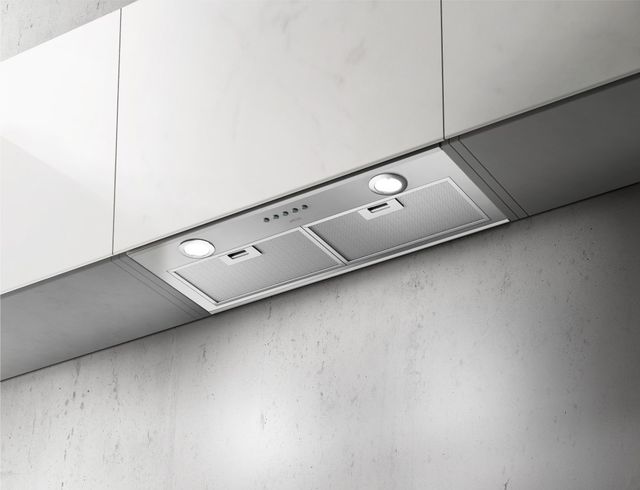

Asti is designed for discreet mounting, fits perfectly into 12" deep cabinetry and is ideal for kitchens where space is limited.Read More
| Dimensions | 9.5"h x 22.5"w x 10.75"d |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Ventilation Type | Convertible (Both) |

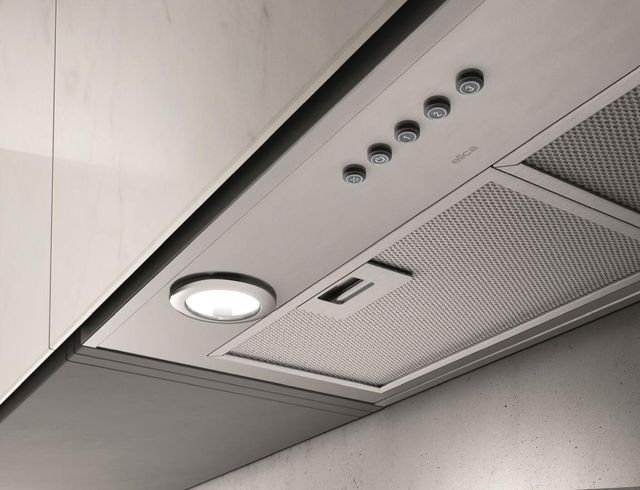

Asti comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient Backlit Electronic Push Button Controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters offer easy maintenance. Asti is designed for standard ducted or recirculating installation (with kit sold separately). Now, featuring a snap-on easy installation mechanism and exhaust outlets located at both the top and rear for enhanced functionality.
Illuminate your culinary journey with LED brilliance. An expected lifetime of over 20,000 hours represents the most remarkable advantage of LED light bulbs.

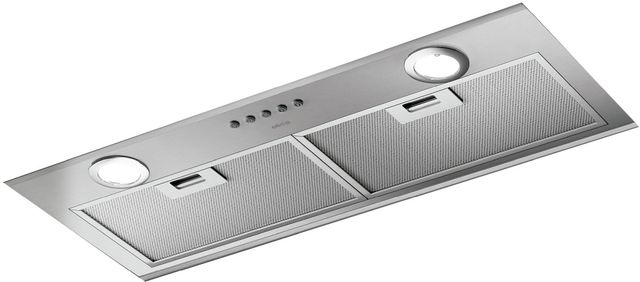

Elevate your kitchen with superior filtration. Aluminum mesh filters are steps above competition, featuring triple-layered, anodized aluminum that is woven into a highly dense mesh.
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Ventilation Type | Convertible (Both) |
| Ventilation Direction | Vertical/Horizontal |
| Vent Location | Top |
| Grease Filter Type | Aluminum Mesh |
| Duct Size (in.) | 6" Round |
| Bulb Type | LED |
| Sones Rating | 0.4 - 5 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 400 |
| Range Hood Features | Light, Removable Grease Filter, Dishwasher Safe Filter |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Fan Speed Options | 3 |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 23 |
| Width (in.) | 22.5 |
| Height (in.) | 9.5 |
| Depth (in.) | 10.75 |
| Height Above Cooktop | 24 - 36 (Electric), 30 - 36 (Gas) |
| Shipping Width (in.) | 15.31 |
| Shipping Depth (in.) | 32.95 |
| Shipping Height (in.) | 16.77 |
| Product Weight (lbs.) | 18.96 |
| ADA Compliant | Yes |
| ENERGY STAR Certified | No |
| Series | Comfort Series Asti |
| Manufacturer Warranty | 2 Year Parts & Labor |
| Voltage | 120 |
| Amp | 2.3 |
| Frequency | 60 |
Vent Orientation | |
| Vent Location | Top and Rear |
